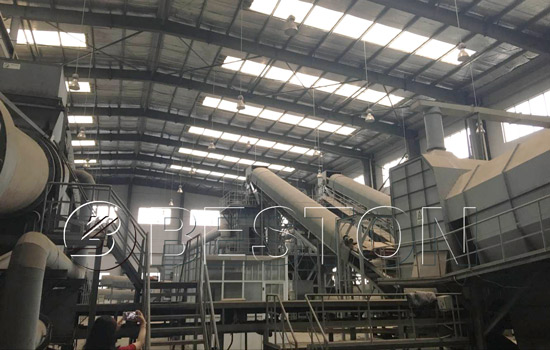

Household Waste Sorting Machine

How do we classify household waste? There is no doubt that Beston household waste sorting machine can efficiently classify all kinds of urban garbage. This machine is designed based on principle of the reducing the volume, turning the waste into treasure. By using the different separation systems, we could get organic, plastic, metal, brick, stone, etc. from the urban waste with high efficiency.

Household Waste Sorting Machine
Household Waste Sorting Machine

Working process of household waste sorting:

1. The forklift transports the rubbish into the rubbish bin, and the hopper bottom plate conveyor will take away these rubbish;

2. The garbage will be balanced by ejecting device, and then be sent material layer dial evenly after the first belt conveyor;

3. Workers will pick out bulky waste when the garbage goes through the manual sorting platform, at the same time the black metal will be picked out by strong magnetic magnetic separation;

4. These rubbish will be separated again by broken drum screen, and will be sorted into two kinds of rubbishes, the diameter greater than 90 mm(plug hole size according to the reality of garbage) on the screen and less than 90 mm undersize material;

5. Then the undersize material as raw materials for the system of fat output. The diameter more than 90 mm sieve material will be through the sieve material transport conveyor into other devices (or packed storage).

automated waste segregation system
Automated waste segregation system

Applications of final products from household waste sorting:

NO. End products Productivity      Usage
1 plastic film 12% 1. Made into plastic particles
2. Pyrolysis platic to oil
2 paper 5% Make pulp to produce new paper
3 metal 5% Smelt new metal
4 glass 3% Recovery for reusing
5 battery,textile,bulk garbage etc 5% Recovery
6 biomass:wood,shell,food residue etc 70% Making charcoal or organic fertilizer

Security Design of Household Waste Sorting Plant:

a. Fully automatic operation,to avoid manual operate mistake;

b. All the processing procedure are under monitoring, ensure the producing going smoothly;

c. Special odor control system, ensure the workshop has a good environment and protect the workers’ health;

d. Sealed producing process, reduce the pollution of the waste.

========================================Main Parts Display=============================================

Plate Feeder
Plate Feeder
Bag Breaker
Bag Breaker
Manual sorting platform
Manual sorting platform
Rotating Screening Machine
Rotating Screening Machine
Comprehensive Winnowing Machine
Comprehensive Winnowing Machine
Sealed Deodorization Tower
Sealed Deodorization Tower
Gravity Separator
Gravity Separator
Sealed Belt Conveyor
Sealed Belt Conveyor
Model BFX-100 BFX-200 BFX-300 BFX-400
Raw material Urban Waste
Capacity 100T/D 200T/D 300T/D 400T/D
Power(KW) 224.7 263 279 294
Area(㎡) 5366 6112 6200 6800
