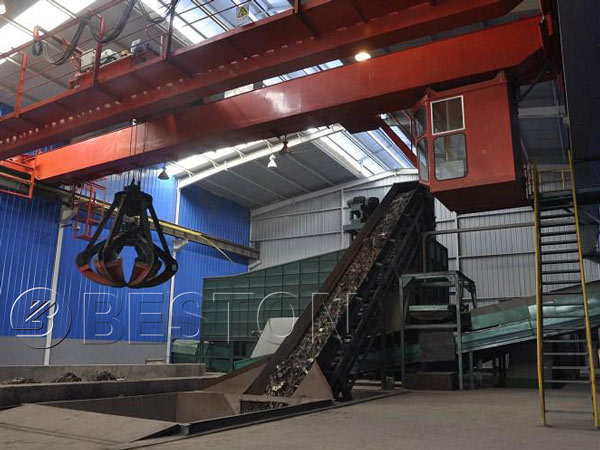

Waste Glass Sorting Machine

Beston sorting machine has the ability to separate waste glass from urban garbage. The solid waste mainly includes plastics, ceramics, stones, porcelain, metal, organic impurities, cork, paper etc. Eventually we will get about 3% glass that can be reused.

Waste Glass Sorting Machine
Waste Glass Sorting Machine

Beston glass sorter adopts control in the whole process of operation, using programmable controller to collect signal from every sensor and convey them into output control contractor and intermediate relay to control three-phase power equipment. Input and output changes on operation, stop and breakdown will be presented directly.

The working principle of glass recycling sorting equipment is integrated separation method of crushing, proportion, the volume, cyclone separation, bouncing separation, and magnetic separation. Equipped with manual auto switcher and crash-stop device for every parts of the system, locates in easy operation position, which will avoid error starting or electrocution.

automated waste segregation system
Automated waste segregation system

Advantages of Beston glass waste sorting machine:

1. All materials can be recycled, and reduce the amount of waste incineration and the amount of waste gas by the advanced urban waste sorting equipment.

2. Separation of high purity, to avoid the not complete separation of artificial separation, which may damage the equipment of next process.

3. Separate large garbage and sand in one-time separation, while the function of broken bags and uniform feeding.

4. Main equipment is patented devices, which are invented by years of field experience. So the failure rate is low, use of effective.

Applications of Final Products:

NO. End products Productivity      Usage
1 plastic film 12% 1. Made into plastic particles
2. Pyrolysis platic to oil
2 paper 5% Make pulp to produce new paper
3 metal 5% Smelt new metal
4 glass 3% Recovery for reusing
5 battery,textile,bulk garbage etc 5% Recovery
6 biomass:wood,shell,food residue etc 70% Making Charcoal from biomass

========================================Main Parts Display=============================================

Plate Feeder
Plate Feeder
Bag Breaker
Bag Breaker
Manual sorting platform
Manual sorting platform
Rotating Screening Machine
Rotating Screening Machine
Comprehensive Winnowing Machine
Comprehensive Winnowing Machine
Sealed Deodorization Tower
Sealed Deodorization Tower
Gravity Separator
Gravity Separator
Sealed Belt Conveyor
Sealed Belt Conveyor

Technical Parameters:

Model BFX-100 BFX-200 BFX-300 BFX-400
Raw material Urban garbage
Capacity 100T/D 200T/D 300T/D 400T/D
Power(KW) 224.7 263 279 294
Area(㎡) 5366 6112 6200 6800

After-sale service:

1. Based on our customers’ site and budget, our experts will design efficient, reliable installation drawings.

2. Engineer (1 person) onsite service, for installation guiding, operation shift training, commissioning.

3. Periodical call visit, to make sure there is no problems of the equipment.

4. Buyer cover cost on flight tickets, board and lodging, transportation, communication regarding to engineer onsite service.
