Beston municipal solid waste recycling plant for sale
list banner

Waste Recycling Plant

Beston municipal solid waste recycling plant is the mechanical integration of high technology product with first-class design, manufacturing processes, perfect configuration and reliable performance. In addition, Beston waste recycling equipment is designed with the first domestic garbage sorting systems and garbage compactors and docking technology.

Beston municipal solid waste recycling plant for sale
Beston municipal solid waste recycling plant for sale

The core technology of municipal solid waste recycling treament is waste sorting system. By garbage uniform feeding, automatic sorting system of bulky waste, bulky wasteautomatic crushing system, automatic torn bags of garbage bags, bulky organic matter automatic broken system, closed mechanization winnowing system, plastic water selection system, and “hot election” system of high temperature and pressure ofhydrothermal hydrolysis of organic matter, urban house refuse can be separated to many kinds: 1) inorganic; 2) sands; 3) organic; 4) irrecoverable fuel (if supplemented by simple manual sorting, hard plastic and rubber etc will be separated); 5) film plastic; 6) ferromagnetic materials.

The key technology of waste recycling sorting machine is to organically integrate different breaking and dissociation equipment to various waste and used printed circuit board so as to achieve the maximum energy-saving effect and high metal separation rate. And the municipal waste recycling plant is equipped with programmable controller in the whole process of operation, so this plant has the ability to collect signal from every sensor and convey them into output control contactor and intermediate relay to control three-phase power equipment. What’s more, boasted shot blasting for every part and painted with high-performance anticorrosive paint in request period, the waste recycling line can have a serving life for 7 years in harsh operation environment.

Municipal Solid Waste Sorting Machine
Municipal Solid Waste Sorting Machine

The working process of waste recycling sorting line:

The feeding way of waste recycling machine is by forklift will rubbish into the rubbish bin, by receiving hopper bottom plate conveyor jiang is expected to take away, balanced by ejecting device sending material layer dial evenly after the first belt conveyor, through the manual sorting platform, picked out by artificial to big ones, at the same time through strong magnetic magnetic separation, black metal picked out, again by broken drum screen, classification of garbage into the garbage and < 90 mm and 90 mm or more (plug hole size according to the reality of garbage) on the screen, undersize material as raw materials for the system of fat (or landfill) output. ≥90mm sieve material through the sieve material transport conveyor into other devices (or packed storage).

Finally, mixed solid waste will be divided into six kinds of end products by waste recycling sorting equipment. Such as inorganic; organic; sands; irrecoverable fuel (supplemented by a simple manual sorting, hard plastic and rubber waste can be separated); ferromagnetic materials and battery;plastic film. And the separation rate can reach 85%, while the separation rate of film plastic reaches 90%.

Applications of Final Products:

NO. End products Productivity      Usage
1 plastic film 12% 1. Made into plastic particles
2. Pyrolysis platic to oil
2 paper 5% Make pulp to produce new paper
3 metal 5% Smelt new metal
4 glass 3% Recovery for reusing
5 battery,textile,bulk garbage etc 5% Recovery
6 biomass:wood,shell,food residue etc 70% Making organic fertilizer or charcoal from biomass

========================================Main Parts Display=============================================

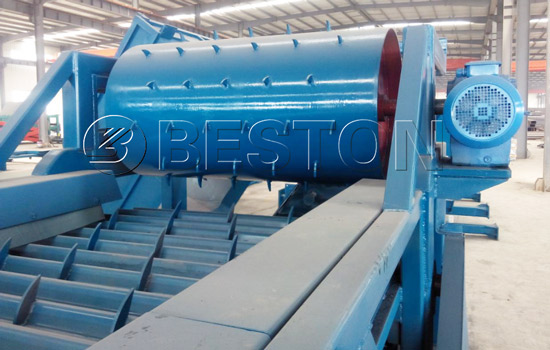

Plate Feeder
Plate Feeder
Bag Breaker
Bag Breaker
Manual sorting platform
Manual sorting platform
Rotating Screening Machine
Rotating Screening Machine
Comprehensive Winnowing Machine
Comprehensive Winnowing Machine
Sealed Deodorization Tower
Sealed Deodorization Tower
Gravity Separator
Gravity Separator

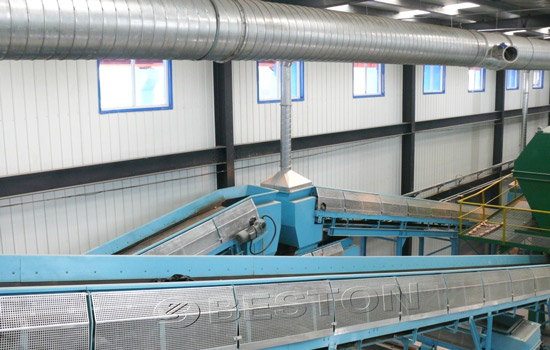

Sealed Belt Conveyor
Sealed Belt Conveyor

Technical Parameters:

Model BFX-100 BFX-200 BFX-300 BFX-400
Raw material Urban garbage
Capacity 100T/D 200T/D 300T/D 400T/D
Power(KW) 224.7 263 279 294
Area(㎡) 5366 6112 6200 6800
